Appucalle Standards
- Steel Gate Valves API602
- Steel Valves ASME B16.34
- Face To Face, Manufacturer Standard
- Face To Face, Flanges, ASME B16.10
- End Flanges ASME B16.5
- Butt Welding Ends ASM E B16.25
- Socket-welding Ends, ASME B16.11
- Screwed Ends ASME B1.20.1
- Inspection And Test API 598
Operation
- Outside ScrewAnd Yoke (OS&Y)
- Bolted Bonnet
- Choice OfWB, Welded Bonnet
- Single Wedge, Fully Guided
- Renewable Seat Rings
- Yoke Integral With Bonnet
- Rising Stem And Non-rising Hand Wheel
- SW, Screwed Ends
- BW, Butt Welding Ends
- Flanged Ends

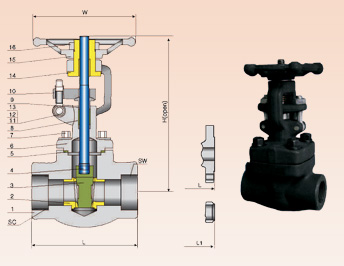

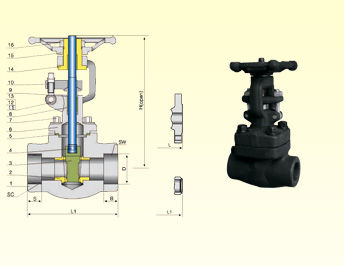

Materials Of Parts
| No. | Part Name | Carbon Steel | ASTM Material 1/1/4cr-1/2 mo | 11/4cr-1/2 mo-si |
| 1 | Body | A105 | A182-F316 | A182-F11 |
| 2 | Bonnet | A105 | A182-F316 | A182-F11 |
| 3 | Wedge | Al 82-F6a | A182-F316 | A182-F6a+HF |
| 4 | Stem | A276-410 | A276-316 | A276-410 |
| 5 | Stem Ring | A276-410 | A182-316 | A276-410+ H F |
| 6 | Bonnet Gasket | Graphite+304 | Graphite+316 | G rap hite+304 |
| 7 | Bonnet Stud | A193-B7 | A193-B8M | A193-B16 |
| a | Packing | Graphite | ||
| 9 | Gland | A276-410 | A276-316 | A276-410 |
| 10 | Gland Flange | A105 | A182-F316 | A182-F11 |
| 11 | Eye Boit Pin | A276-410 | A276-316 | A276-410 |
| 12 | Eye Boit | A193-B7 | A193-B8M | A193-B16 |
| 13 | Eye Bolt Nut | A194-2H | Al 94-8M | A194-2H |
| 14 | Yoke Sleeve | A276-410 | ||
| 15 | Hand Wheel | Malleable Iron | ||
| 16 | Hand Wheel Nut | Carbon Steel |
Dimensional Datas Of 150LB / 300LB / 4300LB
| NPS DN | UNIT | L1" | L (Flanged Ends) | D | SW | SC | H (Open) | DO | Wt2 (kg) | ||||
| 150LB | 300LB | 600LB | D | B | NTP | S | |||||||
| 3/8 | in | 3.12 | 4 | 5.5 | 6.5 | 0.394 | 0.693 | 0.378 | 3/8 | 0.54 | 6 | 4 | 4.5/4 |
| 10 | mm | 79 | 102 | 140 | 165 | 10 | 17.6 | 9.6 | 13/6 | 151 | 100 | ||
| ½ | in | 3.12 | 4.25 | 5.5 | 6.5 | 0.394 | 0.858 | 0.78 | 1/2 | 0.535 | 6 | 4 | 5.1/4 |
| 15 | mm | 79 | 108 | 140 | 165 | 10 | 21.8 | 9.6 | 13/6 | 151 | 100 | ||
| 3/4 | in | 3.62 | 4.62 | 6 | 7.5 | 0.531 | 1.067 | 0.5 | 3/4 | 547 | 6.25 | 4 | 8.2/4.3 |
| 20 | mm | 92 | 117 | 152 | 190 | 13.5 | 27.1 | 12.7 | 13/9 | 158 | 100 | ||
| 1 | in | 4.38 | 5 | 6.5 | 8.5 | 0.709 | 1.331 | 0.5 | 1 | 0.681 | 7.25 | 5 | 10.5/6.6 |
| 25 | mm | 111 | 127 | 165 | 216 | 18 | 33.8 | 12.7 | 17.3 | 185 | 125 | ||
| 11/4 | in | 4.75 | 5.5 | 7 | 9 | 0.945 | 1.677 | 0.5 | 11/4 | 0.709 | 9.38 | 6.25 | 12.4/9.5 |
| 32 | mm | 120 | 140 | 178 | 229 | 24 | 42.6 | 12.7 | 18 | 18 | 160 | ||
| 11/2 | in | 4.75 | 6.5 | 7.5 | 9.5 | 1.181 | 1.917 | 0.5 | 11/2 | 0.724 | 9.5 | 6.25 | 20.1/11 |
| 40 | mm | 120 | 165 | 190 | 241 | 30 | 48.7 | 12.7 | 18.4 | 243 | 160 | ||
| 2 | in | 5.5 | 7 | 8.5 | 11.5 | 1.437 | 2.406 | 0.626 | 2 | 0.756 | 11 | 7 | 28/14.5 |
| 50 | mm | 140 | 178 | 216 | 292 | 36.5 | 61.1 | 15.9 | 19.2 | 279 | 180 | ||
