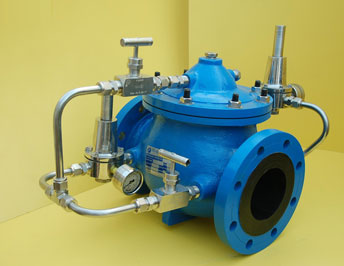

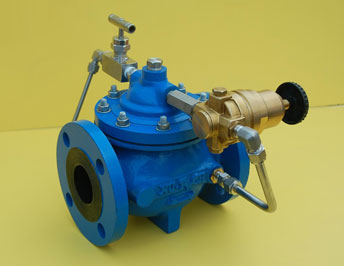

Pressure reducing & surge control valve automatically reduces a higher inlet pressure to a steady lower downstream pressure regardless of flow rate and inlet pressure fluctuations. Pilot valve enables the main valve to close quickly to prevent downstream surges.

Specifications

• Pressure Class : 150 & 300 #
• Temperature Range : -40 to 90 deg.C.
• Media : Any Liquid Services
• Material : Body & Cover : ASTMA 216 Gr. WCB & Alloy Steel
• Max. Inlet Pressure : 300 PSIG
• Max. Outlet Pressure : 0 to 150 PSIG

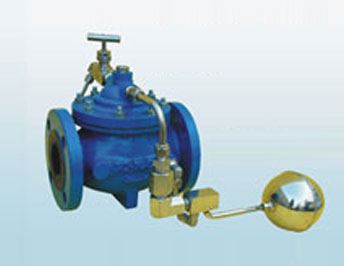

The series 500 valves consists of a wide range of float valves. Valves are available for horizontal mounting and vertical mounting. They are designed to controls the level of liquids in open tanks, ponds, basins, and other similar reservoirs. The series consists of 501-modulationg float valve, 502-float on-off globe type valve, 503- float angle type valve.

Additional Relief/Sustaining Function-500

• 501-Modulating Float Valve
• 502-Float on/off globe type valve
• 503-Float on/off angle type valve
• Maximum Range : 0-300 psig

Specifications

• Globe : 15-80 mm screwed, 50-150 mm Flanged
• Angle : 50-100 mm screwed, 100-150 mm flanged.
• Pressure Ratings : 150 & 300 #
• Temperature Range : -40 to 90 deg.C.
• Media : Any Liquid Services

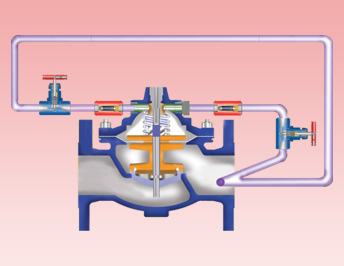

The 700 series Non-slam check valves are diaphragm actuated. The higher downstream pressure enters the valve cover thru a control tube and the valve closes.

Additional Relief/Sustaining Function-200

• 701R-No speed control
• 701-01R-No closing speed
• 701-02R-Opening speed
• 701-03R-Separate adjustable opening and closing speed (4" & smallest)
• 701R-Separated opening and closing speed (6" & large)

Specifications

• Pressure Ratings : Class:150-300 #
• Standard Materials : Stainless Steel
• Size : 150-400 mm
• Temperature Range : -40 to 90 deg.C.
• Main valve Body & Cover : ASTMA 216 Gr. WCB & Alloy Steel
• Media : Any Liquid Services

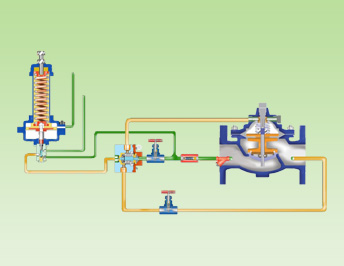

The 900 series altitude valves controls the liquids automatically in terms of their level in the reservoirs without any additional arrangements like float or other controlling devices. Function: It automatically controls the liquid levels in the reservoir. The design is compact and easily mounted on the equipment and has free maintenance characteristics. 900 Series valves are hydraulically operated, diaphragm actuated, pilot controlled globe type valves.

Specifications

• Pressure Ratings : Class:150-300 #
• Temperature Ranges : -40 to 90 deg. C.
• Standard Materials : Stainless Steel
• 150-400 mm ASTMA 216 Gr. WCB & Alloy Steel

Additional Combination Functions

• Altitude Valve : One way flow
• Tank Fill : Delayed opening for adjustable tank draw-down
• Adjustment range delayed level drop : 2-15 feet

Designing automatic control valve is a critical balancing force on one hand you must confidence not only in the quality and performance of the valve, but also in the knowledge and hands-on expertise of the manufacturer. On the other hand, product reliability must be unquestio-ned, meeting the exact design parameters specified. Orders must be shipped as promised, keeping your job on track, and after the sale support is essential. You can count on Nu-Tech to deliver the highest quality automatic control valves available, and service second to none.

Designing automatic control valve is a critical balancing force on one hand you must confidence not only in the quality and performance of the valve, but also in the knowledge and hands-on expertise of the manufacturer. On the other hand, product reliability must be unquestioned, meeting the exact design parameters specified. Orders must be shipped as promised, keeping your job on track, and after the sale support is essential. You can count on Nu-Tech to deliver the highest quality automatic control valves available, and service second to none.

Our premises trained engineers offer detailed specification assistance, analyzing system conditions to recommend the right valve for your application. System, material and application considerations are reviewed, so the right control valve is selected for your project. You can be confident that Nu-Tech and our local representatives are ready and able to assist your design team.

With a long service in commercial plumbing, municipal waterworks, fire protection, irrigation, aviation fueling, marine, theme park, decorative fountain, light industrial and reclaimed water markets. Nu-Tech has the expertise and products to meet your needs. Nu-Tech has kept pace with changing market , developing and delivering quality automatic control valves at affordable prices.

Our fusion bonded, epoxy coated, ductile iron automatic control/valves offer long life and minimal maintenance. And for harsh applications and environments, our fabricated stainless steel valves provide a cost effective solution. Whether your application requires pressure, level, pump or flow control, Nu-Tech is your best choice for selection, sales and service.

The Valve Flow Rate May Be Verified From The Equation :
Q = CV dp

Where... Q = Flow rate, gallons per minute
             Cv = Valve flow coefficient from chart, below
             Dp = Available pressure drop
                  Tank Fill-(System pressure minus tank head in psi)
                  Flow out of tank-(Tank head in psi minus system pressure)

In no case should the flow velocity exceed 25 ft/sec. if a greater flow is required, use a large valve.
